镜像被墙
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kubernetes-dashboard-amd64:v1.10.1
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kubernetes-dashboard-amd64:v1.10.1 k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.1
把镜像copy到其他节点
docker save k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.1 -o dashboard.tar
scp dashboard.tar [IP Address]:/root/
在其他node节点导入镜像(这里必须！所有的节点都要有镜像！！不然会报pull err)
docker load -i dashboard.tar
docker image ls|grep k8s.gcr.io/kubernetes-dashboard-amd64
连不上apiserver
错误日志:
2018/07/28 08:51:12 Starting overwatch
2018/07/28 08:51:12 Using in-cluster config to connect to apiserver
2018/07/28 08:51:12 Using service account token for csrf signing
2018/07/28 08:51:12 No request provided. Skipping authorization
2018/07/28 08:51:42 Error while initializing connection to Kubernetes apiserver. This most likely means that the cluster is misconfigured (e.g., it has invalid apiserver certificates or service accounts configuration) or the --apiserver-host param points to a server that does not exist. Reason: Get https://10.96.0.1:443/version: dial tcp 10.96.0.1:443: i/o timeout
Refer to our FAQ and wiki pages for more information: https://github.com/kubernetes/dashboard/wiki/FAQ
问题原因:
官方的yaml配置文件中有这么一段:
Comment the following tolerations if Dashboard must not be deployed on master
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
使得pod不会分配到到master节点, 并且kubeadm部署的apiserver中启用的验证方式为Node和RBAC, 且关闭了insecure-port, 我猜测可能是这个原因导致连接不上apiServer, 即使是手动修改也不行–apiserver-host参数也不行
解决方法:
注释掉这三行：
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule

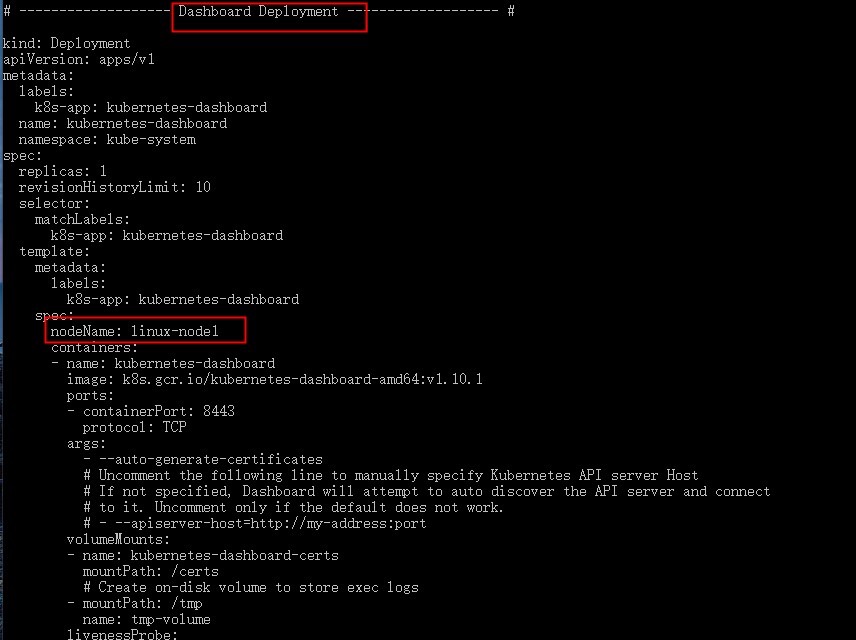

添加nodeName(设置后dashboard将会在这个节点上运行)
最后执行
kubectl delete -f kubernetes-dashboard.yaml
删除pod, 再执行kubectl apply -f kubernetes-dashboard.yaml即可
更新https证书有效期，解决浏览器报错 NET::ERR_CERT_INVSALID
mkdir key && cd key
openssl genrsa -out dashboard.key 2048
openssl req -new -out dashboard.csr -key dashboard.key -subj '/CN=[IP Address]'
openssl x509 -req -in dashboard.csr -signkey dashboard.key -out dashboard.crt
kubectl delete secret kubernetes-dashboard-certs -n kube-system
kubectl create secret generic kubernetes-dashboard-certs --from-file=dashboard.key --from-file=dashboard.crt -n kube-system #新的证书
kubectl delete pod kubernetes-dashboard-xxxxxxxxx -n kube-system #重启服务
获取admin的token登录
在kube-system名称空间创建一个名为dashboard-admin的ServiceAccount
将dashboard-admin这个ServiceAccount和cluster-admin绑定
cat > dashboard-admin.yaml << EOF
apiVersion: v1
kind: ServiceAccount
metadata:
name: dashboard-admin
namespace: kube-system
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: dashboard-admin
subjects:
- kind: ServiceAccount
name: dashboard-admin
namespace: kube-system
roleRef:
kind: ClusterRole
name: cluster-admin
apiGroup: rbac.authorization.k8s.io
EOF
[root@master ~]# kubectl apply -f dashboard-admin.yaml
serviceaccount/dashboard-admin created
clusterrolebinding.rbac.authorization.k8s.io/dashboard-admin created
查看serviceaccount生成的secret文件
[root@master ~]# kubectl get secret -n kube-system |grep dashboard-admin
dashboard-admin-token-twrjp kubernetes.io/service-account-token 3 80s
[root@master ~]# kubectl describe secret dashboard-admin-token-twrjp -n kube-system
Name: dashboard-admin-token-twrjp
Namespace: kube-system
Labels: <none>
Annotations: kubernetes.io/service-account.name: dashboard-admin
kubernetes.io/service-account.uid: 4c2caffd-37fe-49ae-a443-d0b3e345da07
Type: kubernetes.io/service-account-token
Data
====
token: eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tdHdyanAiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiNGMyY2FmZmQtMzdmZS00OWFlLWE0NDMtZDBiM2UzNDVkYTA3Iiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.OEaz9gm3ZB3jVxc4sp4peD4XwO-zPg5on4yV0u4UKpKa6mQcNF0qJ5f1mMO6AztZUPLSgsd46tu1p1ZOEh3FFCdlw7fRT2DSZsPFHP-4ahlJcEVD1egBHnQlvdoEo1Rhxkji157QjegCIu09TPe8m-2cd5Mlw_5rlOnMcJyJuGvyUIIqUi00AHXilEZ1kiI939HhKfqzJtnXwgNUEhmKcNHboGPt7yoKEaMHio-uHQoyQVUXSPXUWhvFtCq1La25oDJBV5SMO5cq3PqqDnCaPMNDLslMh8lv5mYzMvdrz-47hdhuMvc1-pR7LbD2J8hI0XxeAVWt9c4oATaQtj8vLA
ca.crt: 1025 bytes
namespace: 11 bytes
